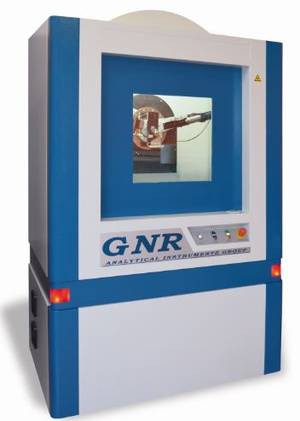

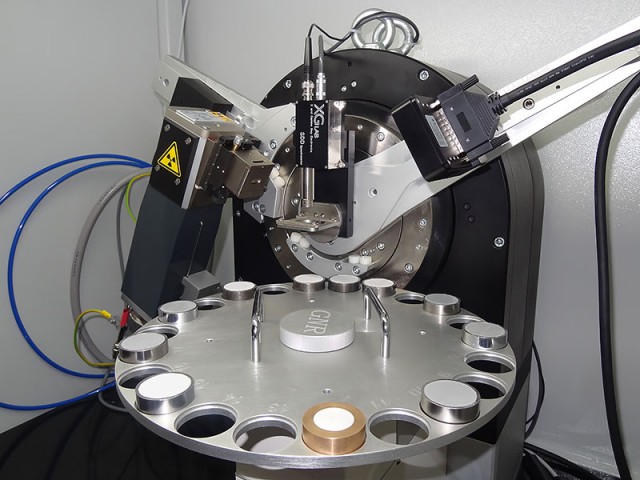

Explorer je víceúčelový difraktometr s geometrií - Theta/Theta - s vysokým rozlišením. Díky svým přímým hnacím momentovým motorům, poskytuje EXPLORER špičkové výkony v mnoha analytických oblastech, od analýzy fází, stanovení strukturních vlastností materiálů a to včetně tenkovrstvých materiálů.
Díky modularitě a široké škále příslušenství umožňuje EXPLORER provádět měření v různých konfiguracích:
Modularita a flexibilita systému GNR Explorer umožňuje začít se základním systémem, který může být později doplněn pro splnění nových požadavků. GNR je schopné dodat širokou škálu rentgenových zdrojů, optiky, držáků vzorků, detektorů dle potřeb uživatele.
Technické parametry
X Ray Generator | Maximum Output Power | 3 kW (option: 4 kW) |
Output Stability | < 0.01 % (for 10% power supply fluctuation) | |
Max Output Voltage | 60 kV | |
Max Output Current | 60 mA (option: 80 mA) | |
Voltage Step Width | 0.1 kV | |
Current Step Width | 0.1 mA | |
Ripple | 0.03% rms < 1kHz, 0.75% rms > 1kHz | |
Preheat and Ramp | Automatic preheat and ramp control circuit | |
Input Voltage | 220 Vac +/-10%, 50 or 60 Hz, single phase | |
Size | Width 48.3 cm, height 13.3 cm, depth 56 cm | |
X-Ray Tube | Type | Glass (option: Ceramic), Cu Anode, Fine Focus (options: any kind of X-Ray tube) |
Focus | 0.4 x 8 mm FF (other options available) | |
Max Output | 3.0 kW | |
Goniometer | Configurations | Horizontal and vertical Theta/2Theta and Theta/Theta geometry |
Measuring circle diameters | 400 - 500 - 600 mm or any intermediate settings | |
Scanning Angular Range | - 110° < 2 Theta < + 168° (according to accessories) | |
Smallest selectable stepsize | 0.0001° | |
Angular reproducibility | +/- 0.0001° | |
Modes of operation | Continuous scan, step scan, theta or 2 theta scan, fast scan, theta axis oscillation | |
Divergence slits | 4°; 2°; 1°; 1/2°; 1/4° | |
Anti-Divergence slits | 4°; 2°; 1°; 1/2°; 1/4° | |
Receiver slits | 0.3; 0.2; 0.1 mm | |
Soller slits | 2° | |
Detector | Type | Scintillation counter Nal (options: YAP(Ce); multistrip) |
Countrate | 2 x 10(6) cps | |
HV/PHA | High voltage supply 600 - 2000 V, gain, low, central and high level control | |
Case | Dimensions | Width 1400 mm, heigh 1800 mm, depth 850 mm |
Leakage X-rays | < 1 mSv/Year (full safety shielding according to the international guidelines) | |
Processing Unit | Computer Type | Personal Computer, the latest version |
Items controlled | X-ray generator, goniometer, sample holder, detector, counting chain | |
Basic Data Processing | Qualitative and quantitative phase analysis. Rietveld analysis, crystalline structural analysis, crystallite size and lattice strain, crystallinity calculation, strain, reflectometry. |
